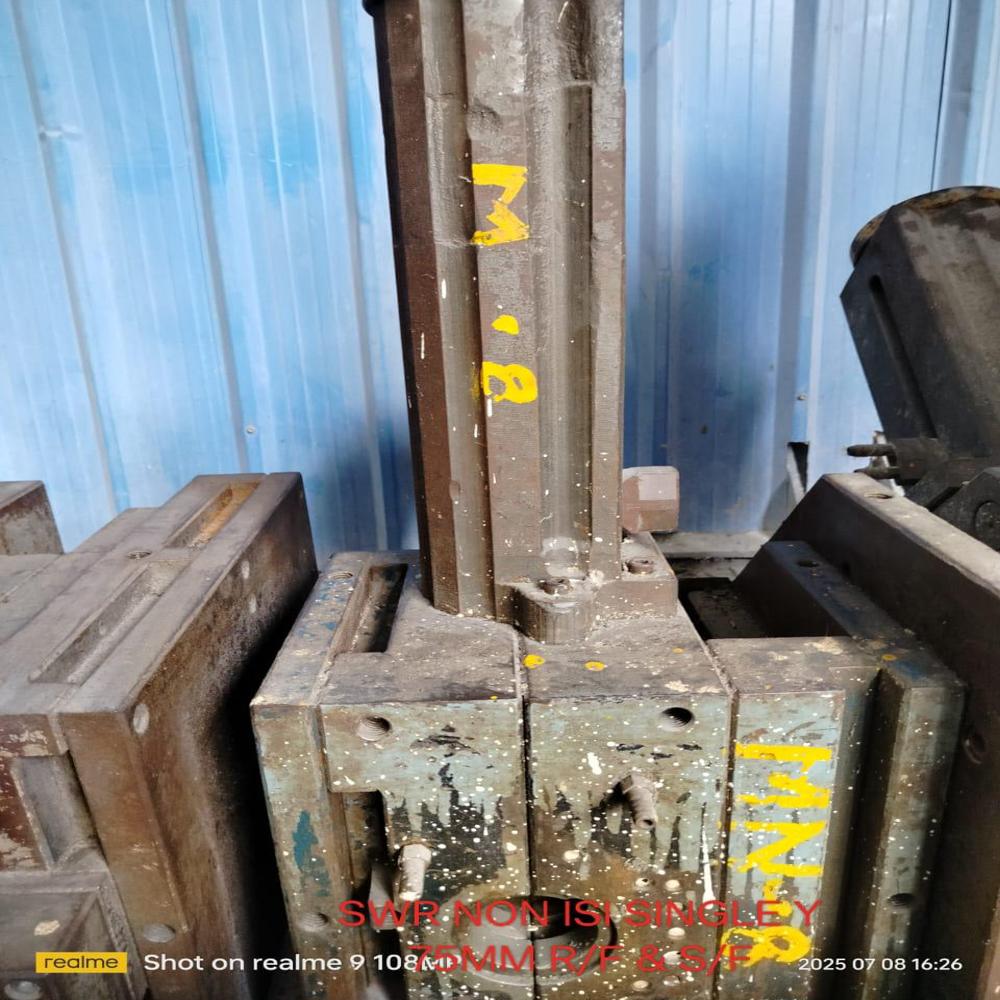

Used Mould - SWR Single wye 75mm - Self Fit & Ring Fit

Used Mould - SWR Single wye 75mm - Self Fit & Ring Fit Specification

Feature
Reusable, high-precision, suitable for self-fit and ring-fit SWR single wye production

Pressure
Non-pressure applications (gravity flow), typically up to 0.5 bar test pressure

Application
SWR (Soil, Waste & Rainwater) drainage system for residential and commercial plumbing

Life Span
Up to 800,000 cycles (subject to maintenance and usage conditions)

Product Type
Used injection mould for SWR single wye

Material
High-grade tool steel (core & cavity)

Shape
Single wye, angled (approx. 45 branch)

Standard
IS 13592/IS 14735 compliant (for SWR fittings)

Connection Type
Self fit & ring fit compatibility

Length
Approx. 620 mm (mould length)

Thickness
Mould thickness approx. 270 - 350 mm

Diameter
75 mm (product cavity size)

Weight
Approx. 350 - 480 kg (varies with build and components)

Color
Standard grey mould finish

Cooling System
Integrated water channel cooling

Suitable Machines
Compatible with standard plastic injection machines (350-450 tons clamp force)

Maintenance
Regularly serviced and cleaned before resale

Cavity
Single cavity design for optimal moulding

Runner System
Cold runner

Core Type
Replaceable, wear-resistant

Lead Time
Immediate dispatch (subject to availability)

Mould Base
Standardized with ejection system

Surface Treatment
Polished, anti-corrosion coated

Usage History
Formerly used for consistent batch production

Used Mould - SWR Single wye 75mm - Self Fit & Ring Fit Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
Number

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Used Mould - SWR Single wye 75mm - Self Fit & Ring Fit

Non ISI SWR Single wye

SWR Fitting Single Y 075 (RF) - (Weight of Article - 0.289)

SWR Fitting Single Y 075 (SF) - (Weight of Article - 0.289)

SWR Fitting Door Y 075 (SF) - (Weight of Article - 0.29)

SWR Fitting Door Y 075 (RF) - (Weight of Article - 0.29)

Superior Quality & Durability

The mould is made from high-grade tool steel, featuring a polished and anti-corrosion coated surface for extended service life, and resilience in demanding manufacturing environments. Its wear-resistant replaceable cores help maintain dimensional accuracy over long production runs.

Efficient Cavity and Cooling System

A single cavity design ensures optimal moulding for SWR single wye fittings, maintaining high precision. The integrated water channel cooling system rapidly dissipates heat, enhancing cycle times and ensuring quality batch production.

Ready for Immediate Integration

With its history of consistent batch production and regular servicing, this used mould is compatible with standard 350-450 ton clamp-force injection machines. Its standardized mould base and ejection system enable quick set-up on your shop floor.

FAQ's of Used Mould - SWR Single wye 75mm - Self Fit & Ring Fit:

Q: How is this used SWR Single Wye 75mm mould maintained before resale?

A: This mould undergoes regular servicing and thorough cleaning before being offered for resale, ensuring reliability and readiness for immediate use in production.

Q: What types of machines are compatible with this mould?

A: It is compatible with standard plastic injection moulding machines with clamp forces ranging from 350 to 450 tons, which are common in manufacturing facilities for SWR fittings.

Q: When can the mould be dispatched after order confirmation?

A: The mould can be dispatched immediately, subject to current stock availability, providing a prompt solution for urgent production needs.

Q: Where is this mould manufactured and supplied from?

A: The mould is manufactured, exported, and supplied from India, meeting international quality standards for SWR plumbing applications.

Q: What is the typical process for using this mould in production?

A: Install the mould onto a suitable injection machine, ensure proper cooling and ejection settings, and begin moulding SWR single wye fittings in compliance with IS 13592/IS 14735.

Q: Which applications and benefits does this mould provide?

A: It produces high-precision SWR single wye fittings for residential and commercial plumbing, ensuring strong joints in non-pressure (gravity flow) drainage systems, and supports both self-fit and ring-fit configurations.

Q: How long can I expect this mould to last during operation?

A: With proper care and maintenance, the mould offers a life span of up to 800,000 cycles, delivering consistent results over extended production periods.
