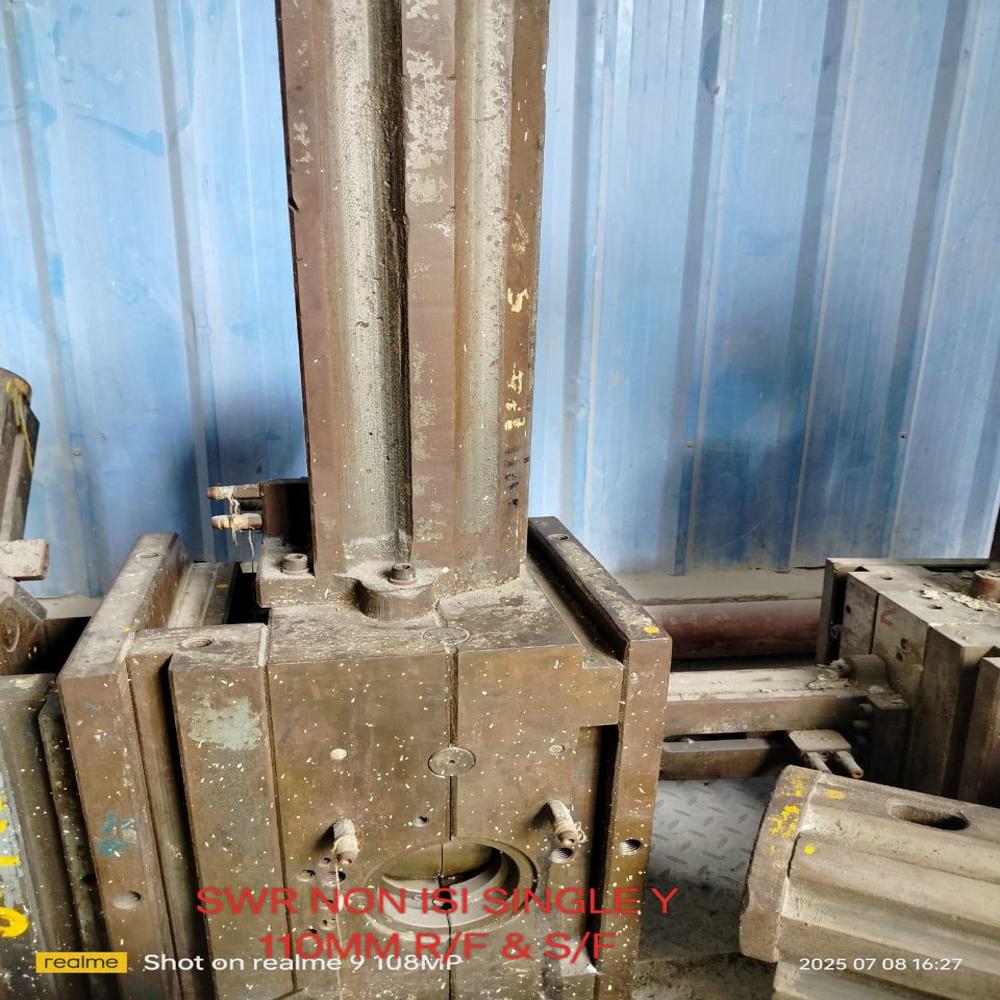

Used Mould - SWR Single wye 110mm - Self Fit & Ring Fit

Used Mould - SWR Single wye 110mm - Self Fit & Ring Fit Specification

Feature
Reusable, dimensionally accurate, smooth inner walls, good finish

Application
Sewerage, drainage, and waste water pipeline systems

Pressure
Suitable for non-pressure waste water systems

Life Span
Up to 1,000,000 cycles (depending on maintenance and application)

Product Type
Injection mould for manufacturing SWR single wye fitting

Material
Tool steel, core/cavity hardened

Shape
Single wye (Y-branch, 45) fitting

Standard
Conforms to IS 13592 / equivalent SWR fitting standard

Connection Type
Self Fit & Ring Fit (socketed, push-fit)

Length
Standard fitting length as per IS code or specification

Thickness
As per standard SWR pipe fitting moulds (typically 3-5 mm)

Diameter
110 mm

Weight
Approx. 120 kg (mould weight)

Color
Gray

Mould Cooling
Integrated water cooling channels

Surface Finish
Polished steel (core and cavity)

Compatible Machine
Horizontal injection moulding machine

Mould Condition
Used, in good working condition, inspected and serviced

Mould Cavity
Single cavity

Cycle Time
40-60 seconds per shot (typical)

About Used Mould - SWR Single wye 110mm - Self Fit & Ring Fit

Non ISI SWR Single wye

SWR Fitting Single Y 110 (RF) - (Weight of Article - 0.58)

SWR Fitting Single Y 110 SF - (Weight of Article - 0.58)

SWR Fitting Door Y 110 (RF) - (Weight of Article - 0.62)

SWR Fitting Door Y 110 (SF) - (Weight of Article - 0.62)

High-Performance Standards

Engineered for reliability and precision, this used mould consistently produces SWR Single Wye 110mm pipe fittings that meet IS 13592 or equivalent standards. Its polished steel core and cavity ensure every fitting has a smooth interior and a highly finished exterior, essential for efficient water and waste flow.

Ready-to-Use with Assured Quality

The mould, having been thoroughly inspected and serviced, is in excellent working order. Its robust tool steel construction and hardened core/cavity provide durability and longevity, while integrated water cooling channels support optimal moulding cycle times and enhance production efficiency.

Compatible and Versatile

Designed for horizontal injection moulding machines, this mould accommodates both self-fit and ring-fit connections. Its typical cycle time of 40-60 seconds makes it suitable for medium- to high-volume production, supporting the manufacturing needs of exporters, manufacturers, and suppliers in the pipeline systems industry.

FAQ's of Used Mould - SWR Single wye 110mm - Self Fit & Ring Fit:

Q: How is the used SWR Single Wye 110mm mould serviced before delivery?

A: Each mould is carefully inspected, cleaned, and serviced by experienced technicians to ensure it is in good working condition. Key components such as cooling channels and polished steel surfaces are checked, and any worn parts are replaced or reconditioned as needed.

Q: What type of injection moulding machine is this mould compatible with?

A: This mould is designed for use with horizontal injection moulding machines, accommodating the standard operational setups found in most plastic pipe fitting production facilities.

Q: When is it suitable to use this mould in production cycles?

A: The mould is best employed for manufacturing SWR Single Wye fittings in batch or continuous operations requiring a typical cycle time of 40-60 seconds per shot. Its robust life span-up to 1,000,000 cycles-makes it ideal for ongoing medium to large-scale production, provided regular maintenance is performed.

Q: Where can these SWR Single Wye fittings be applied?

A: Fittings produced from this mould are recommended for use in sewerage, drainage, and waste water pipeline systems. Their design supports non-pressure waste water conveyance, meeting the standards required for municipal and industrial piping infrastructure.

Q: What are the benefits of using this particular used mould?

A: Users benefit from dimensional accuracy, smooth inner walls, and a high-quality surface finish on each fitting. The mould's longevity and reusable design, combined with efficient cycle times and compliance with IS standards, contribute to cost-effective and reliable production.

Q: How does the integrated water cooling system enhance production?

A: The built-in water cooling channels help maintain an even temperature during moulding, reducing cycle times and ensuring consistent quality. This feature supports higher productivity and prolongs the mould's working life by minimizing thermal stress.
