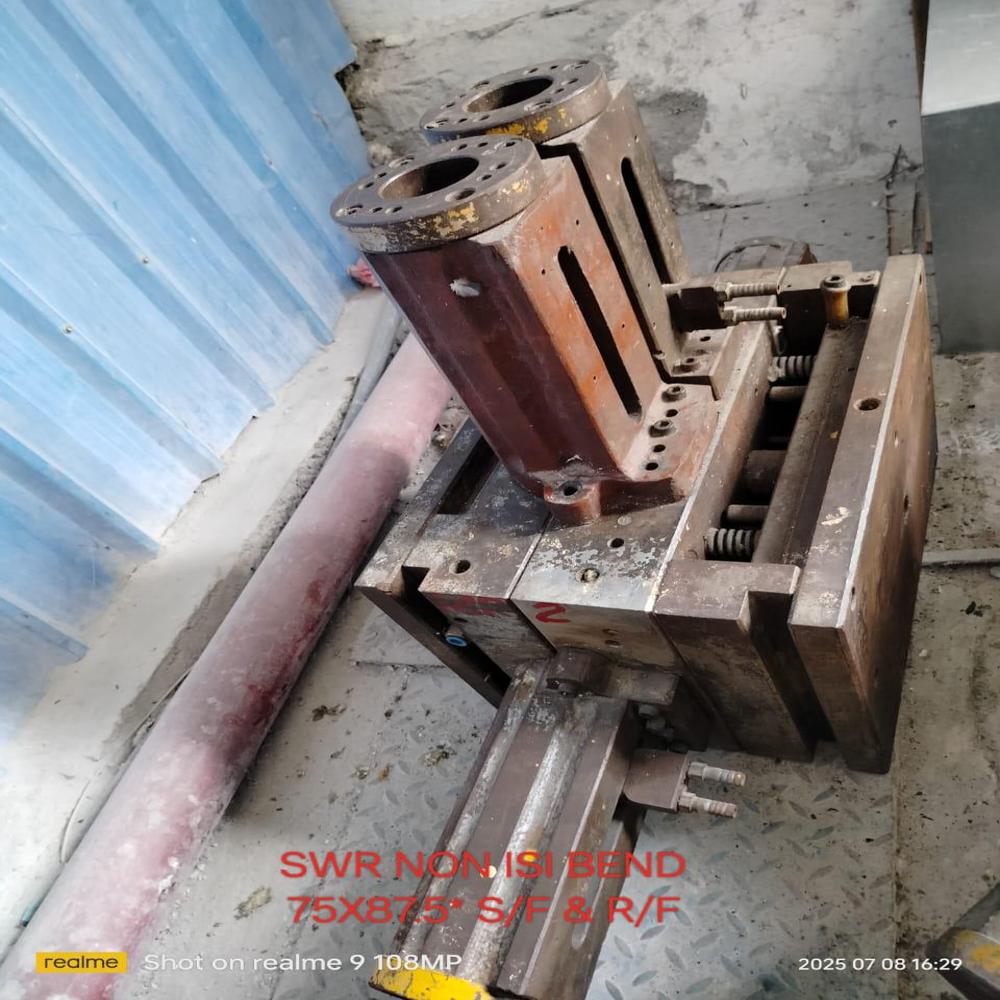

Used Mould - SWR Bend 75mm - Self Fit & Ring Fit

Used Mould - SWR Bend 75mm - Self Fit & Ring Fit Specification

Life Span
Up to 1,000,000 shots (approx., depends on maintenance)

Pressure
Suitable for non-pressure SWR (Soil, Waste & Rainwater)

Feature
Reusable, High Precision, Durable Construction, Corrosion Resistant

Application
Plumbing, Drainage, Sewage, Wastewater systems

Product Type
Used Injection Mould for Pipe Fitting

Material
Tool Steel / Alloy Steel, Core Insert Hardened

Shape
Bend/Elbow (Standard 87.5 & 45 available)

Standard
IS 13592 / Equivalent SWR Pipe Standard

Connection Type
Self Fit & Ring Fit

Length
As per 75 mm bend fitting standard

Thickness
Standard as per SWR pipe fitting requirements (varies per sample)

Diameter
75 mm

Weight
Approx. 350-800 kg (varies with design)

Color
Silver/Grey (Mould Surface)

Mould Usage Condition
Used condition, well maintained, good working order

Cavity
Single or Multiple (depends on mould design)

Ejector Mechanism
Side/core puller, stripper plate or pin ejector (as per design)

Mould Core Hardness
Approx. 48-52 HRC

Cooling System
Integrated water channels for efficient cooling

Runner Type
Cold runner system

Mould Parting Line
Precision Ground

Surface Finish
Mirror polished for accurate product surface

Compatibility
Suitable for SWR Pipe Fittings Manufacturing

Suitable Machine Tonnage
250-500 Ton (recommended depending on mould size)

Used Mould - SWR Bend 75mm - Self Fit & Ring Fit Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Kilograms Per Month

Delivery Time
10 Days

Sample Available
No

Main Domestic Market
Madhya Pradesh, Gujarat, Rajasthan

Used Mould - SWR Bend 75mm - Self Fit & Ring Fit About

"Non ISI SWR Bend

SWR Fitting Bend 075 x 87.5* (Self Fit) - (Weight of Article - 0.161)

SWR Fitting Bend 075 x 87.5 (Ring Fit) - (Weight of Article - 0.161)

SWR Fitting Door Bend 075 x 87.5* (Ring Fit) - (Weight of Article - 0.207)

SWR Fitting Door Bend 075 x 87.5* (Self Fit) - (Weight of Article - 0.207)"

Engineered for Lasting Precision

Each mould is constructed from high-grade tool or alloy steel, offering a precision-ground parting line and mirror-polished surfaces. These features ensure dimensional accuracy and smooth product finishes, contributing to efficient SWR pipe fitting production. The mould's high core hardness and hardened core inserts provide long-lasting durability and consistently high performance.

Flexible Cavity and Ejection Design

Depending on your production needs, the mould can feature single or multiple cavities, and is equipped with versatile ejector mechanisms. Options include side/core pullers, stripper plates, or pin ejectors tailored to your manufacturing process. This flexibility supports high throughput and simplifies demoulding of complex bend/elbow shapes.

Optimized for Performance & Compatibility

Recommended for 250-500 ton machines, this mould integrates water-cooled channels for rapid cycle times. It adheres to IS 13592/Equivalent standards and is expertly designed for SWR (Soil, Waste & Rainwater) pipe fitting applications. The robust construction provides resistance to corrosion and wear, ensuring quality over extensive operational life.
